Workbench Vises Explained: Bench, Pipe, Drill Press & When to Use Each

May 23, 2026

The vise is the most physically demanding accessory on any industrial workbench. It is also the one buyers most often spec wrong. A wood-shop bench vise mounted to a fabrication bench will distort under the first heavy file stroke. A pipe vise bolted to a sheet-metal top will crack the surface within a month. A machinist vise that is one size too large eats up the entire work zone and leaves no room for the actual work.

A workbench vise is a force multiplier, a third hand, and a workpiece holder all at once. The wrong one slows every operation that runs through the station, throws torque into the wrong part of the bench frame, and shortens the life of both the vise and the bench top. The right one disappears into the workflow — operators reach for it without thinking and the workpiece sits where they need it, every time.

This guide breaks down the four most common workbench vise types, explains the specs that actually matter, and walks through the mounting plan that decides whether a vise performs under load or rips its own bolts loose. It is written for any reader sourcing a workbench vise, regardless of bench brand or shop type.

What a Vise Actually Does

A vise has three jobs:

Hold the workpiece. Two jaws clamp on the part with a controlled, repeatable force. The jaw geometry — flat, V-grooved, swiveling — determines what shapes the vise can hold without crushing or slipping.
Multiply hand force. A handle, a lead screw and a nut convert a few foot-pounds of operator torque into thousands of pounds of clamping force at the jaws. A 4" jaw machinist vise can deliver 3,500–6,000 lbs of clamping force at the workpiece.
Anchor against working loads. Filing, sawing, drilling and hammering apply lateral, vertical and twisting loads on the workpiece. The vise has to transfer all of that into the bench top without flexing.

That third job is where most vise specs are decided — and where most workbenches fail. A vise that holds a part beautifully on a flimsy bench will rip its own mounting bolts loose under the first heavy file stroke. The vise and the bench are a single load path. For a deeper view on how the bench frame absorbs that load, the heavy-duty industrial workbench overview covers the structural side in detail.

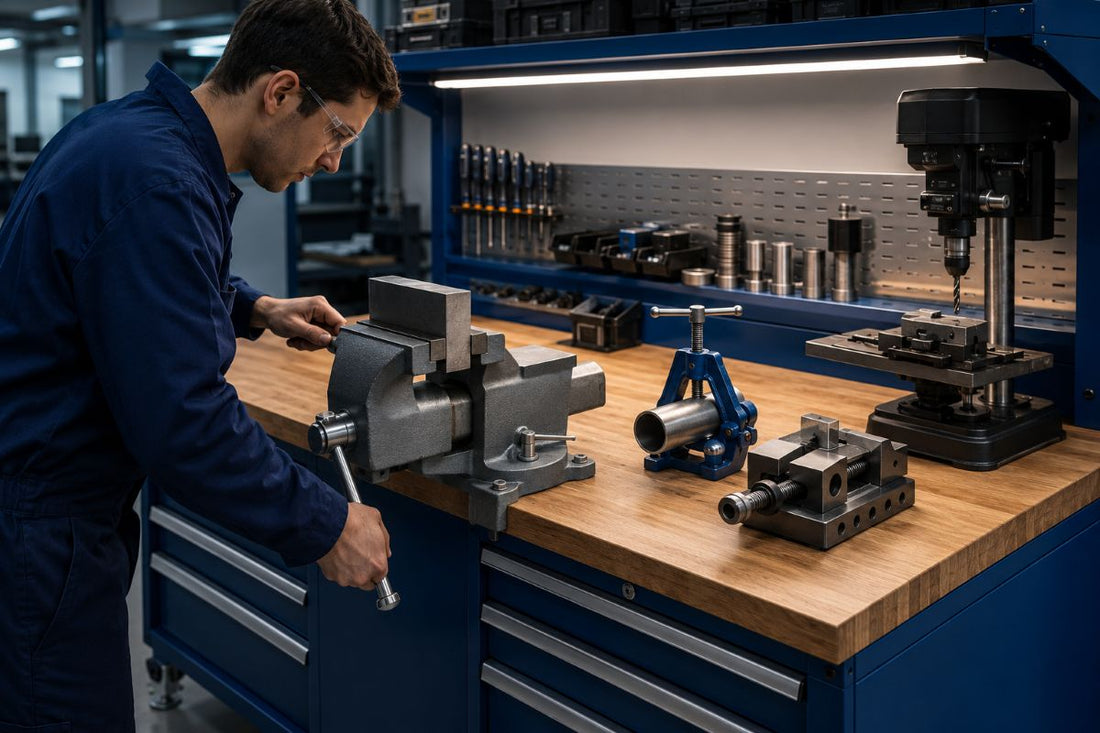

Four Vise Types Every Industrial Workshop Should Know

There are dozens of niche vises in the market — woodworking vises, jeweler's vises, vacuum vises, cross-slide vises. For an industrial workbench, four cover roughly 95% of real-world work.

Bench Vise (Mechanic's Vise)

The default. A bench vise is a heavy cast-iron or ductile-iron body with two flat jaws (often replaceable), a swivel base, and frequently a small anvil surface on the back. Jaw widths range from 4" up to 8" for industrial work. This is the vise on a maintenance bench, a fabrication bench, a tool crib counter, and most general-purpose stations.

Typical specs to look for:

Jaw width: 5"–6" handles the broadest range of work for general maintenance; 6"–8" for heavy mechanical work.
Throat depth: the distance from the top of the jaws down to the slide. Deeper throats hold larger workpieces but reduce clamping rigidity. 3.5"–4.5" is the typical sweet spot.
Opening: how far the jaws can spread. 6"–9" covers most tasks.
Clamping force: 2,500–4,500 lbs is industrial-grade for a 5"–6" vise.
Swivel base: 360° rotation with a lockable lever. Non-negotiable for any bench where the operator works from multiple angles.
Pipe jaws: many bench vises include integrated pipe jaws below the main jaws for round stock up to ~2.5".

Bench vises are bolted through the bench top with three or four through-bolts. The bolt pattern is the limiting factor for retrofit — confirm it matches the bench mounting before ordering.

Pipe Vise

A pipe vise — chain or yoke style — is built for one job: clamping cylindrical pipe and conduit without crushing it. The chain version drops a heavy roller chain over the pipe and tensions it; the yoke version uses a V-block and a top-clamping jaw to grip the pipe from above.

When to use a pipe vise:

Threading, cutting, deburring and reaming pipe in maintenance, utility and HVAC work.
Holding round stock too large for a standard bench vise.
Any work where a flat-jawed vise would distort or score the workpiece.

Pipe vise specs to confirm:

Capacity: typically 1/8"–6" pipe (1/8"–8" on the largest models).
Mount style: bench-mount (bolted to the bench top) or post-mount (free-standing on a heavy steel post). Post-mount pipe vises are common in dedicated pipe shops; bench-mount versions are right for utilities and maintenance where pipe work is occasional.
Reversible jaws for working in either direction without repositioning the pipe.

If a station is going to see significant pipe work, plan for a dedicated pipe vise. Trying to hold pipe in a flat-jawed bench vise is a known cause of out-of-round threads and ruined fittings.

Drill Press Vise

A drill press vise is not a workbench vise in the traditional sense — it bolts to the table of a drill press or a milling machine, not to the bench top. But it shows up on most workbench buyer lists because the bench itself is often the drilling surface for small or medium parts.

Two configurations:

Standard drill press vise: flat bed, two parallel jaws, slot-mounted to the drill press table or a bench surface. For drilling holes through plates, blocks and irregular parts.
Cross-slide drill press vise: adds X-Y travel to the vise body, allowing the operator to position the workpiece under the drill bit without unclamping. Useful for jig work and small-batch repetitive drilling.

Specs that matter:

Jaw width and opening appropriate to the largest part you intend to drill.
Slot pattern matching the drill press table or workbench T-slots.
Clamping height — deeper jaws clamp taller parts but reduce stability.

A drill press vise is rarely the only vise on a bench; it complements a bench vise rather than replacing one.

Machinist Vise (Milling Vise)

Built for precision metalworking — milling, fitting, fine filing, scraping. Machinist vises are smaller in jaw width than a heavy bench vise but ground to higher accuracy: jaw flatness, parallelism between fixed and movable jaws, and squareness to the base are typically held within 0.001" over the jaw face.

When to spec a machinist vise:

Bench work that requires repeatable, flat clamping of square stock.
Fitting, scraping, hand-filing of close-tolerance parts.
Light milling on a bench-top mill.

Key specs:

Jaw width: typically 3"–6" for bench work.
Jaw parallelism: look for "ground" or "precision-ground" specifications.
Swivel base with degree markings for angled clamping.
Hardened jaws that can be replaced when worn or scarred.

Machinist vises live on dedicated precision benches — typically a technical workbench with a static-dissipative or laminate top — rather than a general fabrication station.

How the Bench Top Decides the Mounting Plan

A bench vise is only as good as the bench it is bolted to. Three structural factors decide whether the vise will perform under load:

Top thickness and material. A 1.75" butcher-block top distributes vise loads well, accepts large fender washers cleanly, and has enough mass to dampen vibration during filing and hammering. A 1.25" plastic-laminate top works for lighter bench vises but should be reinforced with a steel backing plate under the vise footprint for heavy work. Static-dissipative tops behave like laminate from a load standpoint — reinforce them the same way for any vise over 5". A comparison of the three common top materials is laid out in detail in what is the best material for an industrial workbench top.

Frame rigidity. Vise loads transfer from the top into the leg frame. A flimsy frame flexes under heavy file or hammer strokes and the vise jaws walk out of position over time. Welded-steel frames with cross-bracing dampen the load; bolt-together frames in tubular steel often do not. The frame design factor is covered in the companion piece on workbench legs and frames.

Bolt pattern and through-bolts. Always through-bolt, never wood-screw. Use grade-5 bolts at minimum, with large flat washers above and below the top. For laminate tops, add a steel backing plate (1/4" plate, 4"x4" minimum) under the top to spread the clamping load and prevent the laminate from delaminating around the bolt holes. Bolt the vise to the top before bolting the top to the frame whenever possible — it makes alignment easier.

Vise placement on the bench. Two rules:

Mount the vise so the fixed jaw projects slightly past the front edge of the bench. This lets the operator clamp long workpieces vertically without the workpiece hitting the bench front.
Place the vise on the operator's dominant-hand side, roughly 6"–8" in from the corner, leaving usable work zone on the rest of the top.

Matching the Vise to the Job

The vise spec should fall directly out of the work the bench will see. A few common patterns:

Maintenance and repair shops. A 5"–6" bench vise with integrated pipe jaws and a swivel base handles the majority of in-house repair tasks. Add a separate pipe vise if pipe and conduit work is a regular load. Mount on a heavy-duty industrial workbench with a butcher block or plastic-laminate top.

Manufacturing and assembly floors. A 6" bench vise for general fabrication, a machinist vise for any bench that does fitting or precision work, and drill press vises on every drilling station. The mix follows the workflow, as outlined for manufacturing applications.

Utility and infrastructure shops. Pipe vise is the priority. Add a 5" bench vise for general work — meters, fittings, brackets. Mobile bench platforms get a bolt-down bench vise that travels with the bench. The operational case for that setup is covered under utilities applications.

Aerospace MRO and tool crib. Smaller bench vises (4"–5") with soft jaws or aluminum jaw covers to protect aerospace-grade fasteners and components. Machinist vises with parallel-ground jaws for any line-replaceable-unit (LRU) bench work.

Motorsports and automotive shops. A 6"–8" heavy-duty bench vise on the primary fabrication bench. Mobile workbench gets a smaller 4"–5" travel vise. Pipe vise rarely needed unless the shop does exhaust fabrication.

Lab and medical-device assembly. Smaller machinist vises with non-marring jaws (nylon, brass, leather). Some labs use vacuum vises for delicate parts that cannot tolerate jaw contact.

Electronics assembly and rework. Small ESD-safe vises or PCB holders rather than traditional vises. ESD compliance and non-conductive jaws are the priority.

A Workbench Vise Buying Checklist

Before ordering a vise, walk through these eight questions:

What's the largest workpiece the operator will hold? Jaw width and opening follow from this.
What's the heaviest load the vise will see? Filing, sawing, hammering, machining — clamping force needs to match the worst case.
Is pipe or round stock part of the workflow? If yes, spec integrated pipe jaws or a dedicated pipe vise.
Is precision flatness required? If yes, machinist vise with ground jaws.
What's the bench top material? Butcher block accepts standard mounting; laminate and SD tops need backing plates.
What's the bolt pattern? Confirm before ordering — most vises ship with a specific pattern that may or may not match existing bench drillings.
Is ESD compliance required? Electronics, semiconductor and some medical environments need ESD-safe vises or non-conductive jaw covers.
Will the bench be mobile? Mobile workbenches transfer shock through the casters — spec a vise rated for the dynamic load, not just the static load.

Mounting a Vise on a LISTA Workbench

Every LISTA workbench is engineered to 35.25" work height on a heavy-gauge welded-steel frame, with a published drawer load of 440 lbs per drawer. That platform rating matters for vise mounting because the frame and pedestal absorb everything the vise jaws transmit. A 6" bench vise is fully supported on a standard 60" industrial bench like the LISTA 60" Industrial Workbench with butcher block top, and the 1.75" butcher block accepts through-bolts cleanly without needing a backing plate.

For heavier work, an 8" bench vise pairs naturally with a workbench with drawers — the pedestal adds mass and torsional stiffness directly under the vise footprint. Browse the configured options across the LISTA workbench range when matching the bench to the vise size. For laminate or static-dissipative tops, the same mounting rule applies: a 1/4" steel backing plate under the vise footprint spreads the clamping load and protects the top from delamination around the bolt holes.

Bolt pattern is the practical limiter on most retrofits. Confirm the vise's hole spacing against the bench top before drilling — the field of acceptable patterns is wide on butcher block, narrower on laminate where reinforcement plates have to align underneath.

Where the LISTA Platform Fits Around the Vise

A vise is one accessory on a station that often needs three or four working together. Once the vise is mounted, the remaining work zone has to be planned for tool reach, parts staging and lighting. The LISTA Nexus Accessory System Kit extends a louvered upright above the bench for tool panels, shelves and power — keeping the bench top clear for vise work while putting the operator's most-used tools inside the primary reach envelope.

For technical and precision work where the bench supports a machinist vise rather than a heavy bench vise, the static-dissipative top option is the right pairing — non-marring, ESD-safe, and dimensionally stable. Stations doing high-precision fitting or LRU work tend to combine a smaller machinist vise, an ESD top, and an instrument riser shelf above the bench.

The bench, the top, the riser and the vise are a single specification — pulling on any one of them affects the other three.

Build the Right Bench Before You Buy the Vise

The vise is the single accessory that puts the most concentrated stress on a workbench. Spec it last, after the bench, the top material and the structural pedestal are decided — because the vise has to live within the load budget of the platform it is mounted to.

If you are building out a new station or upgrading an existing one, our design assistance team will walk through the bench, top material, vise selection and mounting plan as part of a complimentary CAD layout. Send the vise model (or the jaw width and clamping-force range), a photo of the existing station, and the work the bench has to handle — filing, pipe, machining, assembly. The return spec names the bench width, the top material, the backing-plate detail and the bolt pattern, sourced from the manufacturer's mounting data rather than estimated on site. Reach the team at sales@listacabinets.com or (888) 897-9050. Every LISTA workbench and accessory ships factory-direct with no-charge freight in the contiguous 48 states.
