Workbench Legs and Frames: Steel C-Channel, Tubular & Box-Frame Differences

June 5, 2026

Every measurable failure on a working industrial bench traces back to the frame underneath it. A vise that walks out of position during a file stroke is a frame that flexes a few thousandths under lateral load. A drawer that binds after six months is a frame that has racked under uneven floor loading. A bench top that telegraphs a wave across a precision-ground part is a frame whose stretchers were placed wrong for the span. The frame is the load path, and the load path decides whether the bench holds tolerance or quietly drifts out of square.

Procurement teams routinely spec the top, the drawers and the accessories first, then accept whatever frame the catalog defaults to. That order is backwards. This guide breaks down the three frame styles a buyer will encounter — steel C-channel, tubular and box-frame — and explains how each behaves under real working load, what welded versus bolted construction changes about long-term rigidity, and how leveling feet, knee clearance and stretcher geometry shape the bench an operator actually has to live with.

Why the Frame Decides Vise Stability and Accuracy

The frame's job is to convert working force into the floor without losing geometry along the way. Three failure modes show up on under-specified frames:

Vertical deflection at mid-span. A 72" wide top supported only at the ends sags under a 200 lb central load. Even a few hundredths of an inch of mid-span deflection telegraphs into measurement work, machinist-vise alignment and any task that references the top as a flat datum.
Lateral racking under vise load. A bench vise mounted at the front edge applies horizontal force every time the operator files, saws or hammers. A frame that racks 1/16" at the top corner lets the vise jaws drift, and the operator compensates without realizing it.
Torsional twist under offset loading. A drawer pedestal on one side and an open bay on the other applies a twisting moment along the frame's long axis. Weak corners let the frame twist, which throws the top out of plane and binds drawer slides on the loaded side.

A properly engineered frame moves all three numbers toward zero. The right frame is invisible — operators apply working force, the workpiece stays where it was clamped, and drawers roll the same way at year ten as at year one. A detailed treatment of how this plays out on a fully loaded station is laid out in the heavy-duty industrial workbench breakdown.

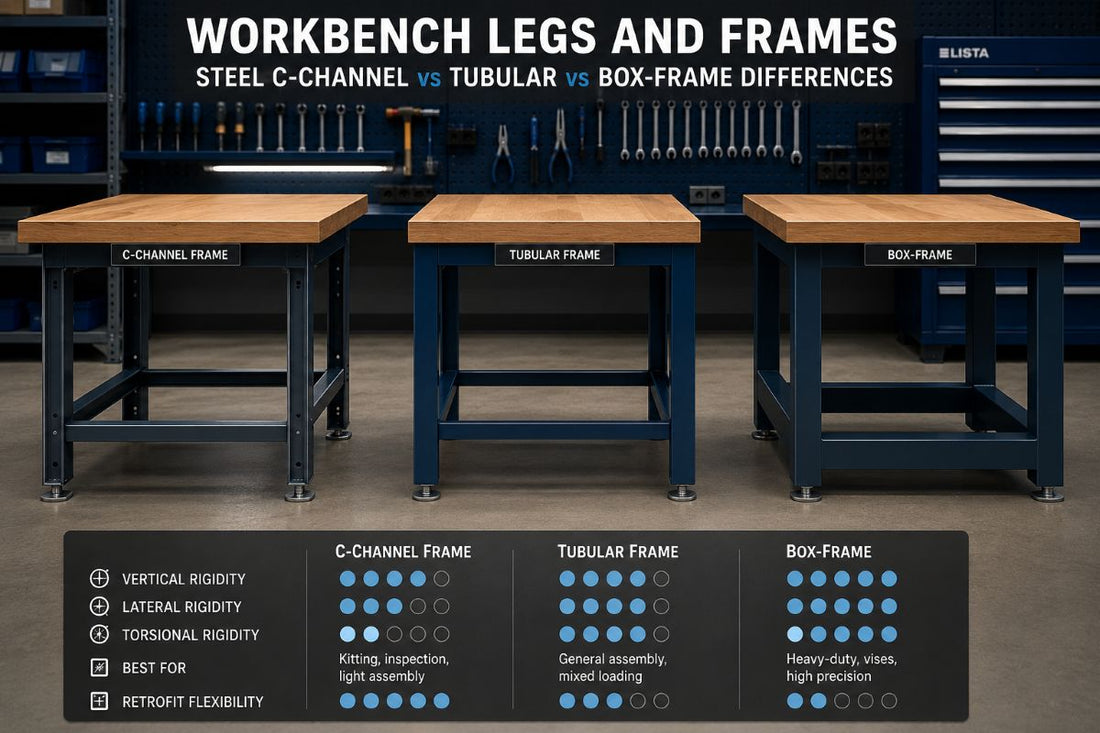

Three Frame Styles You Will Encounter

Industrial workbench frames fall into three structural families. Each behaves differently under load, costs differently to manufacture, and offers different retrofit paths.

Steel C-Channel Frame

A C-channel frame uses rolled or cold-formed C-section steel for the legs and stretchers. The C profile — flat web with two short flanges — is open on one side, giving the frame a high strength-to-weight ratio for vertical load but lower torsional resistance than a closed section.

Vertical rigidity: good. A 7-gauge or 11-gauge C-channel leg supports 2,000+ lb static top load.
Lateral rigidity: moderate. Without diagonal bracing, the open C profile can flex under horizontal vise force at the top of the leg.
Torsional rigidity: lower than a closed section. C-channel resists twist through bolted or welded stretchers — the legs alone do not.
Weld quality: straightforward. The open profile makes every weld accessible from both sides for inspectable joints.
Weight and cost: lower than equivalent box-frame, and generally the most cost-efficient of the three for a given vertical rating.

C-channel suits benches where vertical load dominates and lateral force is moderate — kitting, inspection, light assembly. Retrofit: accepts bolt-on diagonal braces, stretcher plates and pedestal mounts easily.

Tubular Frame (Round or Square Tube)

A tubular frame uses round or square hollow steel section for legs and stretchers. Square tube dominates industrial work because it offers flat reference faces for welding and bolting; round tube is more common in light-duty stations.

Vertical rigidity: very good. A 2" x 2" x 11-gauge square tube leg handles vertical loads comparable to a heavier C-channel.
Lateral rigidity: good. The closed section resists bending in two axes equally — strong where lateral force comes from multiple directions.
Torsional rigidity: good. Closed tube resists twist directly through its own section, not just through stretchers.
Weld quality: more demanding than C-channel. Internal corners are blind to inspection, so manufacturers serious about tubular frames use jigged welding fixtures and qualified procedures.
Weight and cost: intermediate on both. Material cost is moderate; weld labor is higher than C-channel.

Square tube suits benches with mixed loading — moderate vise work and dual-axis lateral force from operator movement. Retrofit: harder than C-channel. Tube walls are thinner than C-channel webs, so heavy retrofit bolting may require backing plates or welded inserts.

Box-Frame (Welded Rectangular Box Section)

A box-frame is a welded structural assembly using heavy rectangular tube or fabricated box section for legs, with stretchers and pedestal mounts integrated as a single welded structure. This is the heavy-duty end of the spectrum.

Vertical rigidity: excellent. Rectangular box legs in 7-gauge or heavier steel carry several thousand pounds per leg with negligible deflection.
Lateral and torsional rigidity: excellent. Closed section plus welded corners plus integrated stretchers mean the frame behaves as a single rigid body under bending or twisting load.
Weld quality: the critical spec. Porosity, undercut and lack of fusion at the corners all show up as flex under sustained working load. Serious manufacturers weld in jigged fixtures with qualified procedures and inspectable corner joints.
Weight and cost: highest of the three. A 72" box-frame can weigh 200+ lbs before the top is installed, and labor is higher across material, welding and finishing.

Box-frames are the right choice for any bench that sees heavy vise work, hammering, sustained dynamic load, or precision-ground top references — heavy mechanical assembly, fabrication, machinist stations, aerospace MRO benches with vises over 5", motorsports fabrication. Retrofit: limited. A welded box-frame is engineered as a single structure. Accessories bolt to designed mounting points, not arbitrary locations on the frame.

Welded vs. Bolted Frames

Beyond the cross-section, the joint method itself drives long-term rigidity. Welded frames form a continuous load path — force flows from the top, through the legs, into the stretchers and out to the floor without crossing a removable joint. There is nothing to loosen. The trade-off is that welded frames cannot be disassembled.

Bolted frames ship as flat-pack components and assemble on site. They are cheaper to freight and easier to move through a doorway. The trade-off is that every bolt is a potential micro-movement under repeated load. Bolted frames need periodic torque checks, and they never quite match the lateral stiffness of an equivalent welded design.

The steel itself matters as much as the joint. Cold-rolled stock holds tighter dimensional tolerance and resists racking better than hot-rolled equivalents — the cold-rolled steel longevity primer covers the metallurgy that separates a frame that holds geometry from one that gradually walks out of square.

Leveling Feet vs. Fixed Feet vs. Casters

The foot at the bottom of each leg decides how the frame transfers load into the floor.

Fixed feet (welded pads). Direct steel-to-floor contact through a welded plate. Maximum rigidity, no adjustment. Right for new installs on flat floors.
Leveling feet (threaded glides). A threaded foot with a pivoting pad allows 1/2" to 1" of height adjustment per leg. Essential on real industrial floors — concrete is rarely flat enough to support a heavy bench on four fixed feet without rocking.
Casters. Wheels for mobile benches. Trade leveling and absolute rigidity for repositioning. The trade-offs around wheel diameter, tread compound and locking patterns are spelled out in the workbench casters guide.

A bench that rocks on uneven floor is a bench whose frame is not in plane — and a frame out of plane is a top out of flat. Leveling feet are the cheapest way to lock geometry into the floor it sits on.

Knee Clearance and Stretcher Geometry

Two dimensions decide whether the operator can actually use the bench comfortably.

Knee clearance is the unobstructed depth between the front legs and the first vertical obstruction. For a seated operator, 24" or more is standard; below 18" the operator cannot pull a chair fully under the top. For a standing operator, 8"–10" of toe clearance at the bottom of the legs is the minimum.

Stretcher geometry is the placement of horizontal cross-members. A lower stretcher 4"–6" off the floor provides rigidity without intruding on toe space. A mid-stretcher at 12"–18" interferes with seated work and should be avoided unless the bench is standing-only. A high stretcher under the top is the most effective for rigidity but eliminates kneehole space.

The right frame matches the work posture, not just the load rating.

Frame Choice by Vertical

Different industries load benches differently. The frame spec follows the work.

Manufacturing and assembly. Heavy welded-steel construction handles the full range of mechanical assembly load — fastener torque, sub-assembly clamping, pneumatic tooling. Frame rigidity is what keeps fixtured work in tolerance across an eight-hour shift.

Aerospace MRO. Welded-steel frames belong at line-replaceable-unit (LRU) bays where mechanical work, vise use and fastener torque are routine. Frame rigidity supports calibrated torque procedures — a flexing frame absorbs torque into itself instead of the fastener, which corrupts the torque reading and the joint behind it.

Lab and medical-device manufacturing. Welded-steel frames with leveling feet support precision instruments that cannot tolerate frame movement during measurement. Pair the frame with a chemical-compatible or static-dissipative top sized to the procedure.

Automotive and motorsports. Heavy welded-steel frames are non-negotiable. Vise work, hammering and fastener removal apply shock load that under-built frames cannot survive. Integrated pedestal mass adds torsional stiffness where it is needed most.

Maintenance and repair. Welded-steel frames handle mixed workload — pipe, conduit, mechanical, electrical, fabrication — where the frame has to absorb every load type without specializing.

Utilities and infrastructure. Welded-steel frames at field-service depots and maintenance hubs see daily use across decades. Leveling feet handle the uneven floors common in older infrastructure facilities.

How LISTA Workbench Frames Are Built

Translating those generic spec rules to a real product line, LISTA's industrial and technical workbench platforms are built around a heavy-gauge welded steel frame. Every load-bearing joint is welded — not bolted — so the frame behaves as a single rigid body under vertical, lateral and torsional load. There is no removable joint in the primary load path, which removes the periodic torque-check obligation that bolted frames carry.

Standard platform dimensions sit at the ergonomic and load-handling sweet spot:

Work surface height: 35.25" (89.5 cm) — the standard for general industrial bench work.
Depth: 30" — deep enough for a full-size workpiece plus tooling in front of the operator.
Width options: 60" and 72" — both supported by the same heavy-gauge welded frame, so the wider span does not compromise mid-span rigidity.

The frame carries butcher block, plastic laminate or static-dissipative laminate tops without mid-span deflection, and it accepts riser shelves, the Nexus accessory system and integrated power without flex at the upper mounting points. A representative configuration is the LISTA industrial workbench 60" W x 30" D with butcher block top for general assembly work, while teams running ESD-sensitive electronics spec the technical workbench variant — 60" or 72" wide — on the same welded chassis. Leveling feet are standard across the platform.

Where the LISTA Platform Fits the Spec

The platform earns its place in specs that combine heavy vise work with integrated pedestal storage. The workbenches with drawers configuration folds the cabinet into the frame so the pedestal mass itself contributes torsional stiffness — a structural benefit, not just storage convenience. Drawers in those pedestals carry 440 lbs each on full-extension ball-bearing slides, which means the frame is engineered for that loaded mass, not just the empty cabinet weight.

For CNC stations where tool holders and gauge work concentrate load on one end of the bench, the LISTA CNC workbench 60" W x 30" D 5-drawer puts pedestal mass directly beneath the work zone. The same welded-frame logic applies — the cabinet is integrated into the load path rather than bolted onto a generic table.

Heavy-duty mechanical assembly, motorsports fabrication and aerospace MRO bays generally consolidate around these welded frames precisely because they remove the variables that flex, walk or rack on under-built alternatives. For multi-station floors that need consistent geometry across dozens of benches, the manufacturing applications overview maps frame choice to throughput, fastener accountability and station-to-station consistency.

A Workbench Frame Buying Checklist

Before ordering a workbench, walk through these nine questions:

What is the heaviest static load the top will carry? Add the top, pedestal weight, riser shelf, tooling and any mounted equipment.
What is the heaviest dynamic load the frame will see? Vise force, hammer strokes, fastener removal — derate frame capacity by 50% for any bench that sees sustained dynamic load.
What span does the frame need to support? A 72" top needs a stiffer frame than a 60" top for the same mid-span deflection target.
Welded or bolted construction? Welded for continuous load path and long-term rigidity; bolted only if disassembly and freight constraints require it.
Fixed feet, leveling feet or casters? Match to floor flatness and mobility requirement.
What is the floor flatness? Real industrial concrete is rarely flat — spec leveling feet unless the floor has been documented as flat to within 1/8" over the bench footprint.
What is the work posture — seated, standing or mixed? Drives knee clearance and stretcher geometry.
Is a vise mounted at the front edge? If yes, prioritize lateral rigidity at the front legs — heavy welded-steel construction is the right choice.
Are pedestals or drawer cabinets integrated? Dual-pedestal configurations add torsional stiffness, but they also concentrate load on two legs instead of four — confirm the frame is engineered for the integrated load.

Build the Frame for the Work Above It

The frame is the component a buyer specifies once and lives with for the working life of the bench. Unlike the top, the mat, the vise or the lighting, the frame is not a serviceable wear item — it cannot be upgraded later without replacing the entire platform. That makes it the single decision on a workbench order that justifies the most deliberate spec work.

If you are configuring a new bench, our design assistance team will walk through frame style, stretcher geometry, leveling spec and pedestal integration as part of a complimentary CAD layout. Send the floor plan, the heaviest static and dynamic load cases, the work posture and any vise or fixture you plan to mount at the front edge — we will return a frame spec sourced from your numbers rather than a catalog default. Email sales@listacabinets.com or call (888) 897-9050 to start the spec, and every LISTA workbench ships factory-direct with no-charge freight in the contiguous 48 states.
