Workbench Casters: Load Ratings, Floor Surfaces and Locking Mechanisms (Mobility Without Sacrifice)

May 21, 2026

A mobile workbench earns its keep the first time a technician rolls it across a hangar floor to the aircraft instead of walking back and forth to a stationary station for ten hours. It loses that value the first time a caster fails — when a wheel flat-spots, a swivel seizes, a brake slips under load, or the bench shimmies under a file stroke because the wheels were never rated for the working force. In industrial environments, the caster is the single component that decides whether a mobile bench is a productivity asset or a hazard waiting for an incident report.

We see the same procurement mistake repeatedly: a bench is selected for its top, its drawers and its footprint, and the casters get whatever the catalog defaulted to. That backwards order is what leaves operators stuck pushing 800-lb benches over half-inch expansion joints, leaving black streaks on epoxy floors, or watching a "locked" bench drift a quarter-inch during precision work. This guide walks through how to spec casters properly — load ratings, wheel materials, floor surfaces, locking mechanisms, bearings and retrofit considerations — so a mobile LISTA workbench carries its full working load without compromise. The same caster principles apply to a mobile HS cabinet with 63 compartments rolling across a tool crib floor.

Why Casters Decide Whether a Mobile Bench Earns Its Footprint

Three failure modes show up on under-specified mobile benches, and all three trace back to the caster:

Rolling resistance under load. A 700-lb bench on undersized casters takes real effort to start, steer and stop. Operators either fight it (musculoskeletal strain across a shift) or stop moving the bench at all — the mobility benefit disappears.
Floor damage. Hard wheels on soft floors leave ruts. Soft wheels on hard floors flat-spot and pick up debris. An epoxy floor patch can cost more than the bench itself.
Position drift. Brakes that lock the wheel but not the swivel let the bench rotate in place. Brakes that lock the swivel but not the wheel let it slide. A bench that drifts a quarter-inch during a file stroke is a tolerance problem.

The right caster is invisible. It rolls smoothly under load, stops where the operator wants it to stop, holds position through working force, and leaves the floor the way it found it.

Load Ratings: Per-Caster vs. Total

Caster load ratings are quoted per caster, not per set. A caster rated for 600 lbs means one wheel carries 600 lbs. A four-caster bench is theoretically rated at 4 × 600 = 2,400 lbs total — but only on a perfectly flat floor with the load centered. The working calculation is different:

Three-caster contact rule. On any floor with minor unevenness, only three of four casters typically carry load at a given moment. Spec total capacity at 3 × (per-caster rating), not 4 ×.
Dynamic vs. static load. A caster rated for 600 lbs static may be rated for only 300–400 lbs dynamic. Hammering, filing and drilling apply shock loads that exceed the static figure — derate by 50% for any bench that sees working force while mobile.
Safety factor. Industrial caster specs typically include a 1.5× safety factor. Don't consume that margin under normal operation.

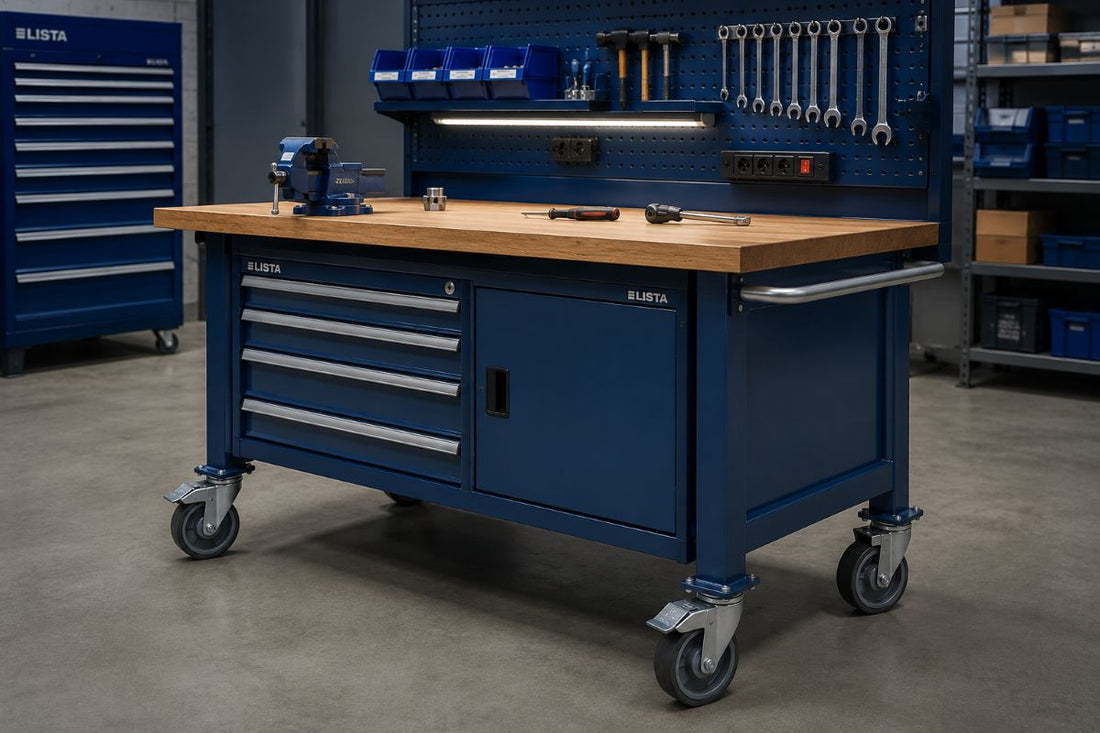

A LISTA Mobile Workbench loaded with a butcher-block top, vise, riser shelf, tooling and an operator leaning into a workpiece can land at 700–1,000 lbs. Casters need to be specified to that figure plus the dynamic margin — not to the empty-bench weight.

What This Means for LISTA Mobile Platforms

LISTA mobile cabinets and mobile workbenches ship with 6" diameter casters in a 2 swivel + 2 fixed configuration. The 6" wheel rolls over expansion joints, cable covers and door thresholds that flat-spot smaller 3"–4" wheels, and distributes load over a wider contact patch. The 2 swivel + 2 fixed pattern gives the bench a natural pivot at the fixed end and steerable control at the swivel end — the bench tracks predictably down an aisle instead of drifting.

Wheel Materials: Match the Wheel to the Floor

The most common caster mistake is mounting a hard wheel on a soft floor or a soft wheel on a hard floor. Five materials cover the realistic spec range:

Polyurethane (75–95 Shore A durometer). The workhorse for industrial benches. Quiet, non-marking, rolls over moderate floor irregularities. Resists oils, mild chemicals and abrasion. Right for concrete, epoxy, sealed wood and most ESD tile. 80–90 Shore A is the industrial sweet spot.
Phenolic. A hard composite rated for very high loads (often 1,000+ lbs per caster). Rolls efficiently on smooth concrete. Damages finished or coated floors. Rough industrial concrete only.
Rubber. Soft, quiet, gentle on floors, with excellent shock absorption. Lower load capacity than polyurethane. Right for medical, lab and clean-room environments.
Steel and cast iron. For extreme load, extreme temperature, or extremely rough floors. Damages most finished floors. Reserved for foundry, forge and heavy-fabrication environments.
Nylon. Light, low rolling resistance, chemical-resistant. Lower load capacity than polyurethane. Useful for lighter benches in chemical or food-processing environments.

For most industrial mobile workbenches on concrete or epoxy, 85–90 Shore A polyurethane is the default. Anything outside that band should be a deliberate choice tied to the floor.

Floor Surfaces: The Variable That Decides Everything

The floor under the bench drives every other caster decision. Four surfaces cover most industrial facilities:

Bare or Sealed Concrete

Forgiving. Most caster materials work. Watch for expansion joints and trench drains — a 6" wheel rolls cleanly across a 1/2" joint that a 3" wheel falls into. Polyurethane 85–90 Shore A is the default.

Epoxy or Polyurethane-Coated Concrete

Common in aerospace MRO, electronics assembly, and medical-device manufacturing. The coating is hard but scratches and scuffs easily. Spec non-marking polyurethane wheels and avoid phenolic and steel.

ESD Tile or Conductive Flooring

Found in electronics assembly, semiconductor handling, and some medical environments. Standard casters break the conductive path between bench and floor. Spec conductive or static-dissipative casters that maintain electrical continuity from the bench frame through the wheel to the floor. Resistance is typically specified at 10⁴–10⁹ ohms.

Sealed Wood or Laminate

Found in trade schools, lab environments and some retrofit facilities. Spec the softest practical polyurethane (75–80 Shore A) and avoid phenolic, steel and any hard composite. Confirm the wheel is non-marking and oil-resistant.

If a bench will move between two floor types — an MRO cart rolling from a coated hangar floor onto bare apron concrete — spec for the more sensitive of the two.

Locking Mechanisms: What Actually Holds the Bench in Place

A "locked" caster does not always mean a stationary bench. Four lock types are in industrial use, and they do different things:

Wheel brake (foot brake). A lever pushes a pad against the wheel tread. Does not lock the swivel — the bench can still pivot in place. Inadequate where working force is applied.
Swivel lock. A pin engages the swivel race. Does not lock the wheel — the bench can still roll. Useful for directional control in tight aisles, not for holding position under load.
Total-lock (combination) brake. Locks both the wheel and the swivel in a single action. The correct spec for any mobile workbench that will see working force — filing, drilling, hammering, vise work.
Kingpinless construction. A design choice, not a brake. Replaces the traditional center bolt with a hardened bearing race, eliminating the most common failure point in heavy-duty casters. Specify for benches that see frequent direction changes or shock loads.

For a mobile workbench that will hold tolerances under hand-work, the right combination is kingpinless construction + total-lock brake + 6" non-marking polyurethane wheel.

Bearing Types: The Spec That Drives Rolling Effort

Bearings inside the wheel hub determine how much force it takes to start and stop the bench. Two types dominate:

Ball bearings. Low rolling resistance, smooth operation, good for moderate loads. Sealed versions resist coolant, oil and shop debris.
Roller bearings (straight or tapered). Higher load capacity, more durable under shock load. Standard on heavy-duty casters above 1,000 lbs per caster.

For a typical 6" polyurethane caster carrying 500–800 lbs, sealed precision ball bearings hit the right balance.

How Mobile Casters Apply Across Verticals

Different industries load mobile benches differently. The caster spec follows.

Aerospace MRO. Mobile benches roll between aircraft, hangar bays and the tool crib across coated concrete. Spec 6" non-marking polyurethane wheels, kingpinless construction, total-lock brakes, and sealed bearings. FOD control matters — wheels that pick up debris carry it. See our aviation applications page for the broader MRO context, and the mobile workshop strategy of bringing tools to the job for how rolling stations cut walking time on the floor.

Electronics Assembly and ESD-Controlled Areas. Conductive or static-dissipative casters, 75–85 Shore A polyurethane on ESD tile, total-lock brakes at soldering and rework stations. The bench-to-floor electrical path is part of the ESD compliance plan.

Lab and Medical-Device Manufacturing. Soft non-marking wheels, quiet operation, easy-to-clean bodies, sealed bearings. Total-lock brakes on every precision instrument station.

Automotive and Motorsports. Heavier benches, heavier vises, heavier shock loads. 6" polyurethane on concrete or epoxy, kingpinless construction, total-lock brakes.

In-House Maintenance and Repair. A mobile bench is the central asset. It rolls over thresholds and expansion joints, holds position during file, drill and hammer work, and survives years of mixed-use abuse. Our maintenance applications page covers the broader workflow, and how to organize a shop with a LISTA mobile storage toolbox walks through the kitting and point-of-use logic that drives most mobile spec decisions. A compact MP mobile cabinet is a common pairing where aisle width is tight.

Retrofit Considerations

Replacing casters on an existing bench is feasible but rarely straightforward. Four things to confirm before ordering:

Mounting pattern. Plate-mount casters use a bolt-hole pattern that must match the bench's existing drilling. Stem-mount casters thread into a single socket. Mixing pattern types requires drilling new holes and adding a backing plate.
Mounting height. A 6" caster sits the bench higher than a 4" caster. On a workbench with a 35.25" target work height, swapping 4" wheels for 6" wheels can push the top to 37"+ — past ergonomic alignment for most operators.
Frame load path. Plate-mount casters distribute load across four bolts. Stem-mount casters concentrate load on a single threaded socket. Heavy-duty benches use plate-mount for that reason.
Brake clearance. Total-lock brakes need clearance to swing the brake lever. Confirm the lever doesn't interfere with the bench frame or the operator's foot path.

For LISTA mobile platforms, casters are spec'd at the factory — retrofit is rarely necessary. For non-LISTA benches being upgraded, our design assistance team can walk through the geometry before parts are ordered.

A Mobile Workbench Caster Checklist

Before specifying or replacing casters, walk through these eight questions:

What is the bench's working total weight? Empty weight + top + drawer contents + tooling + operator leaning load. Spec to this number, not catalog weight.
What is the dynamic load? Halve the static rating for any bench that will see working force while mobile.
What floor surface will the bench operate on? Concrete, epoxy, ESD tile, sealed wood — the answer drives wheel material.
Will the bench cross expansion joints, cable covers or thresholds? If yes, 6" wheel minimum.
Is ESD compliance required? If yes, conductive or static-dissipative casters with documented resistance.
Will the operator apply working force at the bench? If yes, total-lock brakes and kingpinless construction are non-negotiable.
What is the target work height? Caster diameter changes the bench's standing height — confirm against the 35.25" LISTA standard or your facility's ergonomic target.
What is the bearing seal rating? Shop fluids, coolant and debris kill open bearings. Sealed precision bearings hold up.

Spec the Bench and the Wheels Together

The casters and the bench are a single system. Spec'd in isolation, the wheels either undermine the bench or get undermined by it. Spec'd together, a mobile workbench rolls smoothly across its floor, holds position when the operator needs it to, and lasts as long as the steel frame does.
