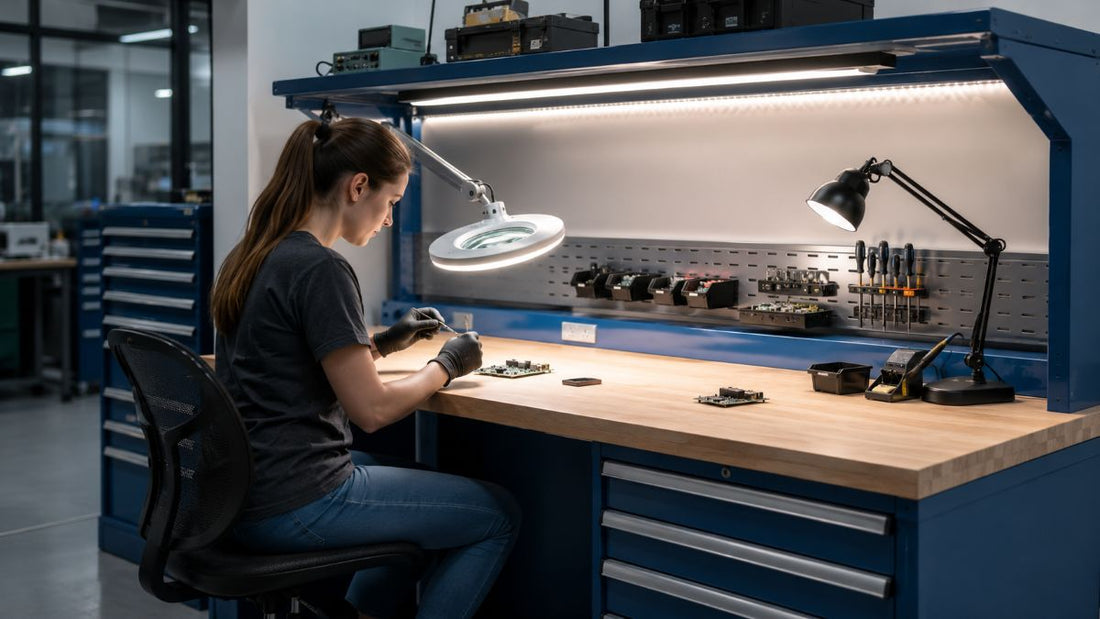

Workbench Lighting Buyer's Guide: LED Bars, Magnifier Lamps & Task Lights for Industrial Benches

In a precision-driven workshop, the workbench is where defects either get caught or get shipped. A technician inspecting a turbine blade, a tech soldering a 0402 resistor, or a tool crib attendant reading a small etched serial number - every one of those tasks lives or dies by the light hitting the work surface. And yet, lighting is the most under-specified component on most industrial workbenches we see in the field.

The wrong fixture wastes lumens above the operator's head while the work surface sits in shadow. The wrong color temperature flattens contrast and makes a hairline crack invisible. The wrong mounting position throws a glare across a screen the operator has to read for eight hours straight. None of these failures shows up on a procurement spreadsheet - they show up as defect rates, rework hours, and a workforce that quietly burns out by 2 PM.

This guide walks through how to spec workbench lighting properly: what the categories are, what the specs actually mean, and how to mount fixtures on a LISTA workbench so the light reaches the surface that matters.

The Real Cost of Poor Workbench Lighting

A workbench lit to the wrong standard quietly inflates the cost of every job that runs through it. Three failure modes are common in industrial settings:

• Defect leakage. Below roughly 750 lux on the work surface, the human eye misses surface defects that would be obvious at 1,500–2,000 lux. In aerospace MRO, electronics assembly and medical-device manufacturing, that gap is the difference between a part rejected at inspection and a part rejected by a customer.

• Operator fatigue. Insufficient or uneven lighting forces the operator to lean in, squint, or constantly reposition the workpiece. The downstream cost is musculoskeletal - neck and shoulder strain that becomes a worker's-comp claim - and cognitive - slower decision-making on every part after lunch.

• Throughput drag. Every shadow or reflection adds seconds per cycle. Multiply by the number of cycles in a shift, then across a team of ten operators, and the productivity loss dwarfs the cost of a proper fixture.

The right lighting investment usually runs a fraction of the cost of the bench it sits above. The ROI is faster than almost any other workbench upgrade.

What "Industrial-Grade" Lighting Actually Means

Four specs separate hobbyist lighting from a workstation fixture that earns its place on a production floor.

Lumens and Lux

Lumens measure how much total light a fixture emits. Lux measures how much of that light actually hits the work surface - lumens per square meter. The lux figure is the one that matters; a 5,000-lumen fixture mounted four feet above a 60" wide bench will deliver wildly different lux than the same fixture at 18" above the surface.

Target lux for industrial workbench tasks:

• General assembly, parts handling: 750–1,000 lux

• Standard precision assembly, machining: 1,000–1,500 lux

• Fine inspection, soldering, lab pipetting, surgical-instrument cleaning: 1,500–2,000+ lux

If a fixture spec sheet only lists lumens, you are not getting the full picture. Ask the vendor for a lux-at-distance plot.

Color Rendering Index (CRI)

CRI rates how accurately a light source reproduces colors on a 0–100 scale relative to natural daylight. For industrial inspection - wire color codes, anodized finishes, blood, biological samples, paint matching - you want CRI ≥ 90. CRI in the 70s is fine for a parking lot, not for a workbench.

Correlated Color Temperature (CCT)

CCT is measured in Kelvin and describes the warmth or coolness of the light:

• 3,000–3,500 K (warm white) - comfortable for long shifts and front-of-house spaces, but flattens contrast for fine work.

• 4,000–4,500 K (neutral white) - the workhorse choice for most industrial benches. Balances contrast with visual comfort over an 8-hour shift.

• 5,000–6,500 K (cool white / daylight) - maximum contrast and detail visibility. Right for inspection bays, electronics rework, lab benches. Not ideal for casual workstations because of higher eye strain over long sessions.

Beam Angle and Glare Control

A fixture's beam angle controls how the light spreads. A narrow beam (15–30°) concentrates light for precision tasks; a wide beam (90–120°) covers a broad work zone evenly. Glare control comes from louvered or lensed shields that keep the light from hitting the operator's eyes at a low angle - a non-negotiable spec for any seated workstation.

For ESD-sensitive environments (electronics assembly, semiconductor handling, medical devices), confirm the fixture body and any conductive elements meet your facility's ESD policy. We touch on this further in our deep dive on static-dissipative workspaces.

Four Workbench Lighting Categories

Industrial workbench lighting falls into four functional categories. Most production benches need a combination of two or three of them, layered.

LED Light Bars (Overhead Primary Illumination)

A horizontal LED bar mounted along the top of a riser shelf or under an overhead canopy is the workhorse fixture for general bench lighting. Typical specs:

• 4,000–8,000 lumens for a 60"–72" wide bench

• 4,000–5,000 K CCT

• Lensed or louvered cover to control glare

• 120 V hardwire or plug-in cord; some models include integrated outlets

LED bars deliver even, broad illumination across the entire work surface. They are the right starting fixture for assembly, mechanical work, parts kitting and most maintenance benches. Mounted on a LISTA Adjustable Riser Shelf Kit, the bar can be height-tuned to the operator's seated or standing posture.

Magnifier Lamps (Precision Inspection)

A magnifier lamp combines an articulated arm with a glass or acrylic lens (typically 3, 5 or 8 diopter) and a ring of LEDs around the lens. It is the right fixture for any task where the operator needs to resolve features smaller than 1 mm - soldering, jewelry work, medical-device assembly, quality inspection of small parts.

Spec considerations:

• Arm reach (15"–35" depending on bench depth)

• Clamp or grommet mount to the bench surface or riser

• ESD-safe variant if used in electronics or lab environments

• Daylight LEDs (5,000–6,500 K) with CRI ≥ 90 for accurate color rendering

Magnifier lamps are a complement to overhead light, not a replacement. Always pair with an LED bar above; the magnifier handles the focal point, the bar handles the rest of the surface.

Task Lights (Focal Point on Demand)

Task lights are articulated single-head fixtures - typically gooseneck, double-arm or LED panel on a flexible arm - that the operator can reposition mid-task. They are how you light a non-standard workpiece, a complex assembly that casts its own shadow, or a fixture that needs glare-free side-lighting.

Specs to confirm:

• Mounting style (clamp, grommet, magnetic base, screw-mount to a louvered panel)

• Beam angle (narrow for spot illumination, wide for area)

• Dimmable driver if operators need to adjust intensity per task

• Heat output - older halogen task lights radiate heat that warps work; modern LED task lights run cool

On a LISTA workbench, task lights mount cleanly to the louvered panel on the Nexus Accessory System Kit, or clamp to the front edge of a riser shelf.

Under-Shelf / Cove Lighting (Shadow Elimination)

When you mount a riser shelf above a workbench, that shelf creates a horizontal shadow line on the work surface directly below it - exactly where the operator's hands are. An under-shelf LED strip eliminates that shadow.

Typical specs:

• 1,500–3,000 lumens for a 60"–72" run

• 4,000 K neutral white to match the overhead bar

• Adhesive, magnetic or screw-mount channel

• Low-profile aluminum housing for heat dissipation

Under-shelf strips are inexpensive and high-leverage. If a bench has a riser shelf, it should also have under-shelf lighting.

Matching Lighting to the Job

Different industries layer the four categories differently. A few common patterns we see in the field:

Aerospace MRO and inspection bays - overhead LED bar at 1,500+ lux, supplemented by a 5-diopter magnifier lamp at each station and a single articulated task light for non-routine inspection. CRI ≥ 95 for accurate finish and corrosion-pattern assessment. We discuss the broader inspection workflow on our aerospace applications page.

Electronics assembly and rework - ESD-safe LED bar overhead, ESD-safe magnifier lamp at every station, daylight CCT (5,000–6,500 K) for component-color identification. Pair with a static-dissipative laminate top - the SD-suffix 60" Technical Workbench is the ESD-rated configuration we ship most often for this work.

Lab and medical-device manufacturing - high CRI (≥ 90), even illumination across the entire bench (no shadow gradients), easy-to-clean fixture housings, and a magnifier for fine-instrument work. Lighting integrates with the bench's hygienic design - smooth surfaces, sealed seams, easy decontamination.

Automotive and motorsports shops - wide-beam LED bars for overhead floodlight, plus flexible task lights for engine bays and underhood work. Color temperature is less critical, but lumens-per-square-foot matters because parts are large and operators move around them. Mobile workbenches benefit from cordless or rechargeable task fixtures - see our LISTA Mobile Workbenches for the platform.

Maintenance shops and tool cribs - overhead LED bar is usually sufficient. Add a magnifier or task light only at the bench where small-part inspection happens.

Spec the Bench to Carry the Light

Lighting is a system, not a single fixture. The bench has to provide three things to make any lighting plan work: a mounting surface, structural rigidity, and power delivery.

Mounting surface. A bare workbench has no native mounting points for overhead lighting. An adjustable riser shelf or the Nexus louvered upright (both linked above) gives you a stable horizontal surface above the work zone where LED bars and louvered panels attach cleanly. The Nexus system in particular is built around a louvered upright that accepts task-light mounts, shelf brackets and tool-holder hardware on the same vertical frame - the full workbench accessories collection lists the riser, Nexus and matching brackets in one place.

Structural rigidity. Heavy LED fixtures and articulated magnifier arms put cantilever loads on the riser or upper structure. Lighter-gauge consumer-grade benches flex under that load over time, which throws the light alignment off and shows up as uneven illumination weeks later. Every LISTA workbench is built on heavy-gauge welded steel with a 35.25" standard work height - the rigidity is engineered in, so a fixture mounted today is still aimed correctly a year from now.

Power delivery. A workbench powering an LED bar, a magnifier lamp, a task light, a soldering iron, an oscilloscope and a laptop quickly outruns a single outlet. LISTA's workbench accessory line includes integrated 15-amp power strips, and the Nexus system routes power through the upright so cables stay off the work surface. Cable management is not a cosmetic concern - exposed cables become trip hazards, snag points and ESD pathways depending on the environment. For a full walk-through of bench power and routing, see our companion guide on industrial workbench power and cable management.

A Quick Workbench Lighting Checklist

Before you order a fixture, walk through the bench it's going on:

1. Measure the work surface. Width, depth and the height of any riser. Lumens needed scale with surface area.

2. Identify the smallest feature an operator needs to resolve. Sub-1 mm features push you into magnifier-lamp territory; larger work is fine with overhead bar plus task light.

3. Choose your CCT based on shift length and task type. Long shifts on broad assembly: 4,000 K. Short, high-precision inspection: 5,000–6,500 K.

4. Confirm CRI ≥ 90 for any inspection, lab, medical or electronics work. CRI in the 80s is acceptable for general assembly only.

5. Plan the mounting before you buy the fixture. Riser shelf, Nexus upright, clamp, grommet - all of these have weight and geometry limits.

6. Verify power capacity. Add up the wattage of every device on the bench. A 15-amp circuit covers 1,800 W of continuous load.

7. Spec ESD-safe fixtures if any part of the bench is ESD-controlled.

8. Plan under-shelf lighting if you have a riser. It is the cheapest and highest-leverage addition you can make.

9. Pilot one station before rolling out across the floor. A 30-minute walk-through with the operator after a week catches issues before you've bought twenty fixtures.

Configure a Lit, Powered LISTA Workbench

Most of the lighting work happens above the work surface. But the difference between a fixture that works reliably for ten years and one that comes loose, drifts out of alignment or trips a breaker is the structure underneath. The LISTA workbench platform - heavy-gauge welded steel, riser shelves, the Nexus Accessory System, integrated power - is what lets a thoughtful lighting plan actually hold up under daily production load.

If you're spec-ing a new bench or upgrading an existing one, our design assistance team will lay out the riser, power and lighting integration as part of a complimentary CAD plan before you commit to anything. We've configured these systems for aerospace MRO bays, electronics rework floors, medical-device assembly lines and motorsports pit garages - every one of them with different lighting needs and different bench geometry.

Contact us at sales@listacabinets.com or call (888) 897-9050 to talk through your bench layout. All LISTA workbenches and accessories ship factory-direct with no-charge freight in the contiguous 48 states.
