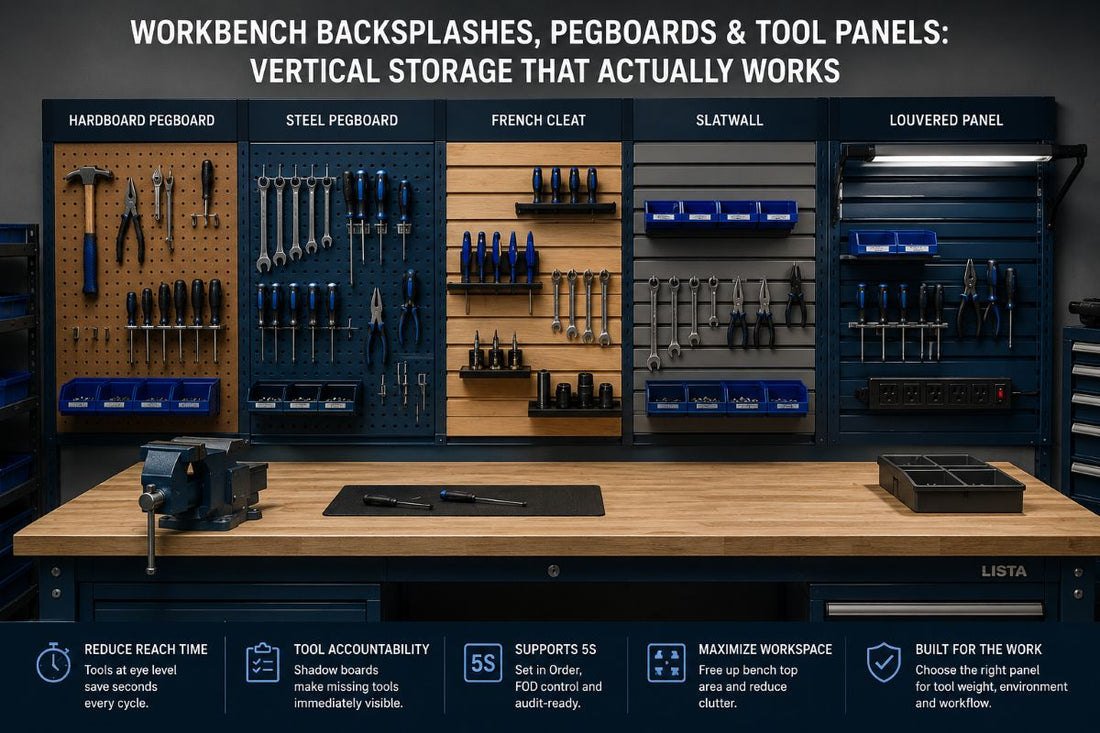

Workbench Backsplashes, Pegboards & Tool Panels: Vertical Storage That Actually Works

A workbench without vertical storage forces every hand tool, gauge, fixture and consumable into a horizontal sprawl across the top. The operator hunts. Reach time climbs. A misplaced 10 mm socket becomes a five-minute fault. On an aerospace MRO bench it becomes an FOD investigation. On a 5S audit it becomes a finding. None of these costs show up on the workbench purchase order — they show up as cycle-time variance, missing-tool incidents and a station that fails inspection.

A backsplash, pegboard or louvered tool panel inverts the geometry. Every tool gets a home directly above the work, inside the operator's primary reach envelope. The right panel — hardboard, steel pegboard, French cleat, slatwall or louvered upright — depends on tool weight, FOD regime, ESD requirements and how often the layout changes. This guide walks through each panel family, the mounting and hook hardware that decides whether the system performs at year five the same way it performed at install, and the verticals where each option pays back.

Why Vertical Storage Is an Operational Decision

Three drivers make the wall behind the bench more valuable than the drawer below it.

• Reach time. A tool in a drawer takes one to three seconds to retrieve. A tool at eye level above the work takes a quarter-second. Across a 200-cycle shift, that delta compounds into measurable throughput.

• Tool accountability. A shadow board makes missing tools visible without anyone counting. Tool accountability is the bedrock of FOD control in aerospace and the audit path through 5S "Set in Order" in manufacturing — neither program works without it.

• Workspace recovery. A 60" bench with twelve commonly-used tools laid flat loses 8–12 square feet of usable area to clutter; the same twelve tools on a panel return the bench to its rated work area.

These are not preferences. They separate a station that hits cycle from one that bleeds time to motion waste — covered in depth in the 5S methodology guide.

Panel Types Compared

Five families dominate industrial tool-panel work. Each makes a different trade between load, reconfigurability, durability and cost.

Tempered Hardboard Pegboard

The original pegboard. A pressed-fiber panel, typically 1/4" thick, drilled on a 1-inch on-center grid with 1/4" or 9/32" holes. Cheap, easy to cut on site, broadest hook ecosystem. Also lowest-rated for sustained heavy loads — hardboard fatigues around hole edges and hooks loosen. The right answer for light hand tools, gauges and jigs in low-humidity environments.

• Hole grid: 1" on center.

• Hole size: 1/4" or 9/32".

• Load per hook: 2–10 lbs.

• Failure mode: hole-edge wear; moisture warping.

Steel Pegboard

Same hole grid, same hook compatibility, vastly different load behavior. A 16–22 gauge steel panel takes 25–50 lbs per heavy-duty hook without distorting and resists humidity, solvents and impact. The industrial default where tools are heavier than a screwdriver or the panel sits in a fabrication, weld or solvent-exposed environment.

• Load per hook: 25–50 lbs on heavy-duty steel pegs.

• Failure mode: powder coat chipping at high-cycle hook locations.

French Cleat Wall

A system of horizontal interlocking strips milled at a 30°–45° angle. Tool holders and shelves are built with the mating cleat on the back and hung onto the wall strip. French cleat earns its place where the operator wants custom tool holders — a cradle for a calibrated micrometer, a magnetic strip for bits. Load capacity per cleat segment is high and the system is effectively infinite in vertical reconfigurability.

• Load per cleat: 50–200 lbs depending on strip thickness and fastener spacing.

• Best for: custom tool holders, shops that build their own fixtures.

Slatwall

A horizontal-groove panel system. Hooks, shelves, bins and brackets slide into the groove, making hook position infinitely adjustable along the horizontal axis rather than locked to a 1" grid. Aluminum-extrusion slatwall handles heavier loads than MDF and survives industrial conditions.

• Load per hook: 15–35 lbs on MDF; 35–75 lbs on aluminum extrusion.

• Best for: mixed bin-and-hook layouts, kitting stations.

Louvered Panel

Formed steel ribs running across the panel face that accept dedicated tool holders, bin brackets, hooks and shelves. Louvered systems take heavier loads than slatwall and integrate with task-light arms and magnifier mounts that perforated boards cannot carry. Industrial louvered uprights often ship as a workbench-mounted assembly sized to the bench top, with optional integrated power strips.

• Integrated power: premium uprights bundle a 15-amp strip; perforated panels do not.

• Best for: benches where the panel must integrate with task lighting, power and magnifier arms.

Mounting: The Spec That Decides Whether the Panel Lasts

A panel rated for 50 lbs per hook holds 50 lbs per hook only if it is mounted into structure that can take the load. Three mounting realities matter.

Wall-stud spacing. North American light-commercial and residential framing runs studs at 16 inches on center. A panel longer than 32" will land on at least three studs if mounted level. Steel-stud commercial construction may run 16" or 24" on center. For masonry or concrete, switch to sleeve or wedge anchors rated to the hook plus tool weight, with a safety factor of two to three.

Furring strips. A pegboard mounted flat against a wall provides no clearance for hook backs, which is why hardboard pegboard is sold with plastic spacers or installed over 1/2" or 3/4" furring strips. Steel pegboard often has integrated standoffs. Confirm hook back-depth against panel-to-wall clearance before installing.

Workbench-integrated mounting. Bench-mounted panels — riser-shelf backsplashes, louvered uprights — travel with the workbench and survive reconfigurations. Wall-mounted panels are anchored to the building. For stations that may move, the bench-integrated panel is the right answer. The interaction between an upper storage shelf and a vertical panel is covered in the guide to workbench riser shelves and upper storage.

Shadow Boards, 5S and FOD Control

A pegboard is a storage substrate. A shadow board is a system. Outlining each tool's footprint on the panel — paint, etched vinyl, foam cutout or printed laminate — converts a panel from "place to hang tools" into "place that announces missing tools." The benefit is operational, not cosmetic.

• At-a-glance accountability. A glance at a populated board confirms every tool is present. One empty outline announces which tool is missing and where it belongs.

• 5S "Set in Order" discipline. The second S — Seiton (整頓) — calls for every tool to have a fixed home. A shadow board enforces that home physically.

• FOD prevention. Most foreign object damage in aerospace is attributed to poor housekeeping, careless assembly and inadequate operational practices — the failure modes shadow boards interrupt at the source. The aerospace industry standard, NAS 412 (Rev. 2, August 31, 2023, Aerospace Industries Association), covers fabrication, manufacturing, assembly, test, hangars, ramp and flight environments.

5S originated at Toyota as part of the Toyota Production System. The five steps — Seiri (Sort), Seiton (Set in Order), Seisō (Shine), Seiketsu (Standardize) and Shitsuke (Sustain) — depend on visible tooling discipline. The parallel discipline for high-value and calibrated tools is covered in the storing sensitive industrial tooling guide.

ESD Considerations for Electronics and Avionics Benches

A pegboard above an electronics or avionics bench enters the ESD-protected workspace. Three rules apply.

• Painted-steel pegboards are not ESD-safe by default. A powder-coated panel is electrically isolated from ground through the paint film. Tools on insulated hooks gather charge.

• Continuity path matters. If the panel sits in the ESD-protected zone, bond it to facility ground through a verified path — a grounding lug fastened to bare steel, strapped to the bench ground.

• Hardboard is an insulator. Standard tempered hardboard does not conduct. Static-dissipative laminate panels exist; verify the dissipation rating before specifying.

For a bench with a static-dissipative laminate top, the vertical panel above it must not break the ESD discipline the top establishes.

Where Each Panel Earns the Spec: Vertical Patterns

Six verticals map cleanly onto specific panel families.

• Aerospace MRO and avionics. FOD control non-negotiable. Steel pegboard or louvered panel with shadow outlines, every tool accounted for, the board bonded to ESD ground where avionics demands it. Aligns with NAS 412 — see the aviation applications page for MRO context.

• Electronics assembly. ESD-grounded steel or louvered panel, shadow boards for hand tools, integrated task lighting and magnifier arms. An integrated power strip drives soldering stations and inspection lighting without trailing cords.

• Manufacturing assembly and lean cells. Steel pegboard or louvered panel with 5S shadow outlines. Color-coded zones for shared vs. individual tools — see the manufacturing applications page for context.

• Laboratory and medical-device build. Static-dissipative or easy-clean smooth panels for cleanroom-adjacent benches. Slatwall or louvered systems with closed bin accessories that resist particulate accumulation.

• Motorsports and race-team garages. French cleat or steel pegboard with custom holders for torque wrenches and calibrated specialty tools. Shadow outlines decide whether a tool returns to the toolbox after a stop.

• Maintenance and facility ops. Steel pegboard or French cleat behind every maintenance station. The benches accumulate diverse tools across electrical, mechanical, plumbing and HVAC trades — the panel format that survives that breadth gives the maintenance lead permission to reconfigure.

Buyer Checklist

Before ordering any vertical storage panel for a bench, walk through these ten questions:

1. What is the heaviest tool that will hang on the panel? Spec to that load with a safety factor of two — three for FOD-controlled environments.

2. How often will the layout change? Daily reconfiguration favors perforated boards or slatwall; once-and-done layouts favor French cleat.

3. Wall-mount or bench-mount? A bench-integrated panel moves with the workbench. A wall-mounted panel stays with the building.

4. What does the wall behind the bench provide? Wood-stud, steel-stud, masonry or concrete — mounting hardware follows from the substrate.

5. Is shadow-board discipline required? If 5S or FOD compliance is in scope, build outlines in from day one rather than retrofitting later.

6. Are ESD requirements in scope? Verify the grounding path through the panel — painted steel does not conduct.

7. Is integrated power needed at the panel face? A louvered upright with a 15-amp strip removes trailing cords; perforated boards do not.

8. Is task lighting mounting integrated? Louvered systems accept light-arm brackets; perforated boards typically do not.

9. What is the tool inventory? Hand tools and gauges favor pegboards; bins and bracketed equipment favor louvered or slatwall systems.

10. Who reconfigures the panel? Operator-reconfigurable systems pay back faster on benches with task variation; supervisor-controlled systems hold tighter to 5S audit standards.

Where the LISTA Nexus Louvered Panel Fits

For facilities specifying a bench platform where vertical storage must integrate with the top rather than the wall, the louvered upright lives natively on the bench. The LISTA Nexus Accessory System Kit (XSSMNX-60/2424) is a louvered upright sized to the 60" workbench top, with an integrated 15-amp power strip. Hooks, bin brackets, tool holders and shelves engage the louver and lift off for reconfiguration without tools.

What that integration buys, against a wall-mounted board:

• The panel travels with the bench. When a cell reorganizes, the upright moves with it. No re-anchoring to drywall or masonry.

• Power lands at the panel face. The 15-amp strip feeds soldering stations, inspection lamps and torque controllers without extension cords across the work surface.

• Task lighting mounts to the upright. Light-arm brackets and magnifier arms thread directly into the louver, eliminating the bolt-on lamp clamp that competes with hand-tool real estate on a perforated board.

• The system shares a parts catalog with the bench platform. Hooks, bins, holders and shelves are spec'd from one accessory family.

The Nexus upright pairs with the broader bench-mounted overhead system, including the LISTA Adjustable Riser Shelf Kit, which spans 12"–18" of height adjustment and resists the over-reach motion that drives ergonomic injury.

How LISTA Workbenches Carry the Vertical Storage System

The upright has to mount to something rigid. A heavy-gauge welded-steel workbench frame at the 35.25" standard work height absorbs the upright load without flex, and the 60" or 72" bench widths size cleanly to the Nexus catalog. For facilities that need a configured combination of bench top, pedestal cabinets, riser shelf, louvered upright and task lighting tailored to a specific operation — FOD-controlled aerospace, ESD-grounded electronics, lab chemical-resistant, or general manufacturing — the LISTA custom solutions team returns a CAD configuration matched to the work being done.

Build the Panel Around the Work, Not the Other Way Around

Vertical storage is the highest-leverage square footage on a workbench. The panel system, the hook hardware, the shadow outlines and the grounding all decide whether a 5S audit clears, whether an FOD inspection holds, and whether the operator hits cycle without hunting.

Tell us how your team tags tools — foam shadows, 5S labels, color-coded zones, FOD-control checks — and our design team will configure a Nexus louvered upright that matches the system you already run. Photos of your current station speed the spec by a week. Reach us at sales@listacabinets.com or (888) 897-9050. All LISTA workbench accessories ship factory-direct with no-charge freight in the contiguous 48 states.
