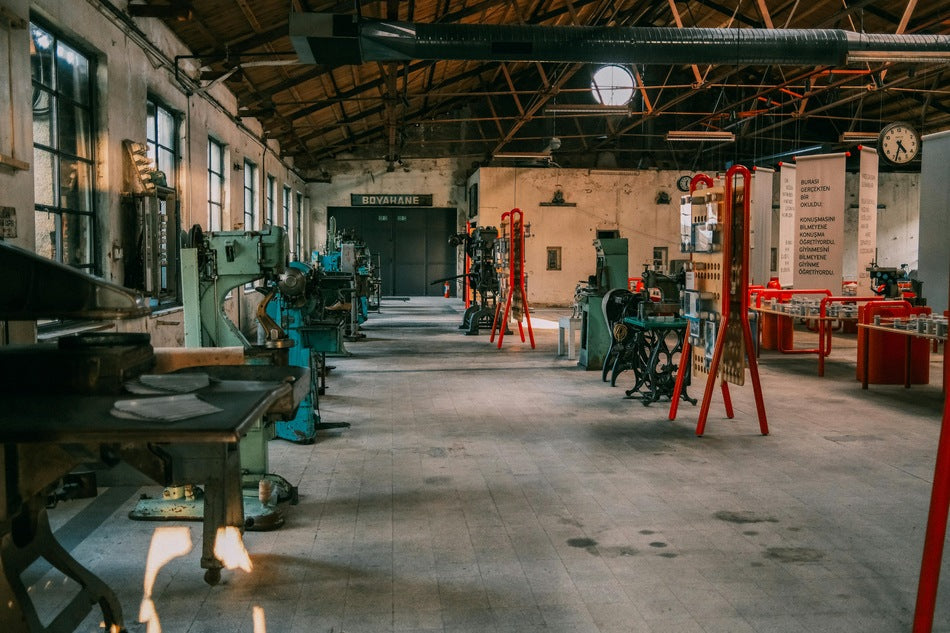

Do You Want To Improve Productivity? - Start With the Workshop Equipment Layout

Designing a floor plan for a modern industrial facility is an exercise in logistics and human factors engineering. The goal of an effective layout is to minimize motion waste - the unnecessary movement of people and parts that erodes profit margins.

When a facility manager begins planning a workshop equipment configuration, they are essentially building the physical architecture of their operational throughput. A well-designed floor plan reduces cycle times, improves safety, and guarantees that every square foot of the building contributes to the bottom line.

Defining Workflow Logic and the Work Triangle

The most effective layout strategies begin by identifying the primary workflow path. In a traditional shop environment, this is often conceptualized as a ‘work triangle’ between raw material storage, the processing area, and the finished goods or assembly zone.

The placement of workshop equipment should facilitate a linear or U-shaped flow that prevents workers from backtracking through the facility. The reason? Backtracking is not merely a nuisance; it is a primary cause of floor congestion and accidental collisions.

By mapping out the path of a part from the moment it enters the bay to the moment it leaves, a facility designer can identify bottleneck areas. This mapping allows for the strategic positioning of heavy machinery and secondary support stations.

When the physical environment matches the logical flow of the work, the facility achieves a state of visual order where the next step in the process is physically adjacent to the current one. Once the broad movement of materials is established, the designer must look closer at the individual stations and how often specific items are handled.

Prioritizing High Frequency Access Zones

Not all tools or machines are used with the same frequency. A professional layout utilizes frequency-of-use data to determine the proximity of storage to the operator. Items used every hour should be within the primary reach zone - meaning that specific workshop equipment is stored on or within the workbench itself.

Items used daily should be in secondary storage nearby, while specialized workshop equipment used only once a week can be relegated to the perimeter of the floor. This tiered approach to accessibility is a fundamental component of the 5s methodology.

By reducing the number of steps a technician must take to retrieve a tool, the facility recovers hundreds of micro-moments of productivity every day. Over a year, this recovery results in significant labor savings and increased output capacity. While physical proximity handles the horizontal speed of work, the efficiency of the entire footprint often depends on how the facility utilizes height.

Managing Floor Space through Verticality

In industrial real estate, the most expensive resource is the floor footprint. Most under-optimized shops focus only on the horizontal plane, leaving the cubic space above the floor empty. A high-performance workshop equipment layout utilizes vertical storage to clear the floor for revenue-generating machinery.

High-density cabinets that reach eye level or higher allow for a massive concentration of inventory in a small footprint. This shift toward verticality requires a different mindset regarding workshop equipment selection.

Instead of wide, shallow shelving that takes up valuable aisle space, facility managers should opt for modular systems that offer high vertical density.  This approach cleans up the visual environment and also helps verify that aisles remain clear for personnel and material handling equipment.

When planners calculate the total cost of ownership for their facility, the ability to avoid expanding the building footprint by maximizing vertical space is often the single largest cost-saving factor. Maximizing the cubic space clears the floor, but a clean floor must also be a safe one, requiring strict adherence to compliance standards.

Safety and Compliance in the Floor Plan

Safety is an inherent part of layout engineering. A floor plan must account for the safe movement of forklifts, the clearance requirements for heavy machinery, and the egress paths required by fire codes.

When positioning workshop equipment, designers must make certain that pinch points are eliminated and that there is a clear distinction between pedestrian walkways and vehicle paths. Ergonomics is the other side of the safety coin. The height of work surfaces and the reach required to access storage must be standardized to prevent repetitive strain injuries.

Using modular cabinets that allow for height adjustment and customized drawer configurations allows the workspace to adapt to the human worker, rather than forcing the worker to adapt to a static, uncomfortable environment. These safety protocols often result in a fixed layout, yet modern production demands a level of flexibility only found through mobility.

The Role of Mobility in Dynamic Layouts

The needs of a modern facility are rarely static. A layout that works for today’s production run might be obsolete in six months. To address this, a dynamic workshop equipment strategy incorporates mobility into the floor plan.

Workbenches on heavy-duty casters and mobile tool cabinets allow a facility to re-task a bay in minutes. Mobile equipment is particularly valuable in maintenance and repair environments, where the work (such as an aircraft or a large generator) is stationary and the technician must bring the tools to the job site.

By integrating mobile workshop equipment into the layout, a facility gains the flexibility to scale up or down without undergoing a permanent, expensive renovation. This adaptability is the bridge between general efficiency and the highly specialized needs of various high-performance industries.

Specialized Layouts for High Performance Industries

While the general principles of layout design apply to all shops, different industries require specific configurations to meet their operational demands. At LISTA Cabinets, we specialize in providing the technical infrastructure required to execute these complex layouts across a wide variety of sectors.

Our Swiss-engineered systems are the definitive choice for facilities that require precision, durability, and a professional aesthetic. Whether you are outfitting a sterile laboratory or a high-performance race shop, our modular cabinets, mobile LISTA toolboxes, and industrial workbenches provide the structural foundation for a world-class workshop equipment layout.

Explore our specialized applications and discover how LISTA products transform operations across these key industries:

• Manufacturing Applications: Optimize your production floor with high-density tool storage and ergonomic assembly stations designed to protect CNC tools and streamline workflow.

• Motorsports and Automotive: Build a professional repair environment with mechanic tool storage and custom workbenches designed for the rigors of high-performance tuning.

• Maintenance and Repair: Enhance facility upkeep with durable repair & maintenance storage solutions that offer both stationary and mobile flexibility.

• Aviation and Aerospace: Meet the stringent requirements of aircraft maintenance with specialized aerospace storage and work surfaces built for precision inspections.

• Military and Defense: Secure your mission-critical equipment with customizable military storage solutions designed for high-pressure environments.

Our California-based team of experts is ready to help you plan your next facility upgrade. We provide the genuine LISTA products needed to turn a disorganized shop into a high-efficiency powerhouse. Contact us if you have any questions.
